Reducing Non-Cutting Time: The Impact of Heavy-Duty Automatic Tool Changers (ATC) on VTLs
In 24/7 continuous industrial operations, every minute a machine spends not making chips is money lost. When machining massive components for Wind Energy & Power Infrastructure, switching heavy cutting tools manually is not only physically exhausting for operators but also incredibly inefficient.

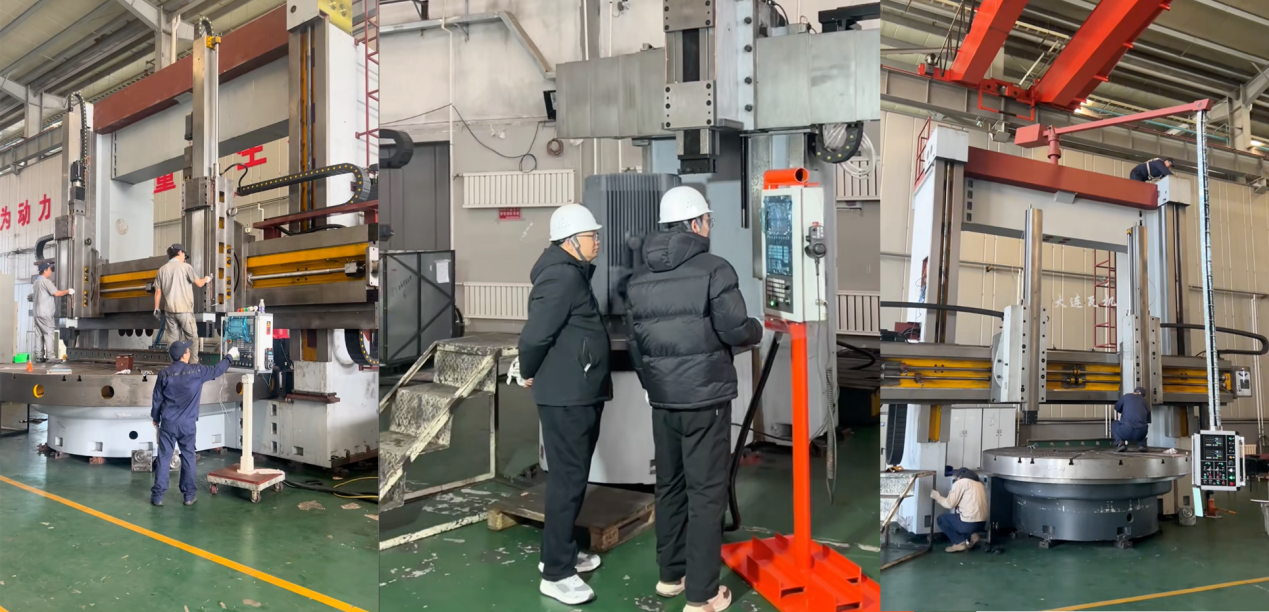

To maximize throughput, DALIAN WAJI CNC MACHINE integrates a highly advanced Modular Automated Tool Holder Interface into our large vertical lathes. In this article, we analyze how a heavy-duty Automatic Tool Changer (ATC) drastically reduces non-cutting auxiliary time and accelerates your Return on Investment (ROI).
The Hidden Cost of Manual Tool Changes in Heavy Turning
Machining a turbine main bearing housing or a rock crusher base requires multiple operations: rough turning, fine facing, boring, and threading. Each operation demands a specific, heavily reinforced cutting tool.
On older or poorly equipped machines, operators must manually unclamp, swap, and recalibrate multi-kilogram tool holders using a crane or pure physical strength. This process introduces several severe bottlenecks:
· Downtime: A manual tool change can take 5 to 15 minutes. Over a multi-step component, this adds hours of dead time per shift.
· Safety Risks: Handling oversized turning tools invites ergonomic injuries and accidents.
· Loss of Precision: Manual changes often require re-touching off the tool, opening the door for human error and shifting tolerances.
Want to Increase Your Machine's Uptime by 30%?
Automate your heavy turning processes with DALIAN WAJI's advanced tooling interfaces. Directly consult the source manufacturer today.
Submit My Requirements, Request a QuoteThe DALIAN WAJI Solution: Square Ram & Modular ATC Interface
To ensure peak performance, our CK series is designed around a hyper-rigid Square Ram / 4-Station Tool Turret structure. But we don't stop at manual turrets.
The Modular Automated Tool Holder Interface
Our industrial-grade CNC vertical lathes are equipped with a state-of-the-art Modular Automated Tool Holder Interface. This technology is engineered for the extreme weights associated with heavy-duty turning.
· Heavy-Duty Compatibility: Not only does it support heavy-duty Automatic Tool Changer (ATC) systems, but it is also completely compatible with almost any heavy-duty tool holder on the market.
· Seamless Automation: With an ATC equipped, the CNC control (Siemens or FANUC) commands rapid, precise tool swaps in a matter of seconds—completely eliminating human intervention.
· Redundant Elimination: It successfully eliminates non-cutting auxiliary time, allowing the machine's 200 kW high-torque spindle and high MRR capabilities to stay engaged with the material continuously.
Compounding Returns for High-Volume Manufacturers
By reducing a 10-minute manual swap to a 30-second automated exchange, a machine shop running 3 shifts a day can reclaim up to 2-3 hours of active machining time daily. Over a 300-day work year, that translates to hundreds of additional massive components produced.
Furthermore, this automation drastically reduces operator fatigue, allowing a single machinist to oversee multiple CNC vertical lathes simultaneously.
Frequently Asked Questions (FAQ)
Q: Are ATC systems fragile under heavy interrupted cutting?
A: No. Our Square Ram structure is heavily reinforced. The automated interface is specifically designed to lock heavy tools securely into place, capable of withstanding maximum cutting forces up to 25,000 N (as seen on the CK5120Fx model).
Q: Does the ATC interface work with the Siemens 828D system?
A: Absolutely. Our electrical engineering team perfectly integrates the Modular ATC Interface with Siemens 828D, FANUC Oi-TF, and GSK systems for flawless macro execution.
