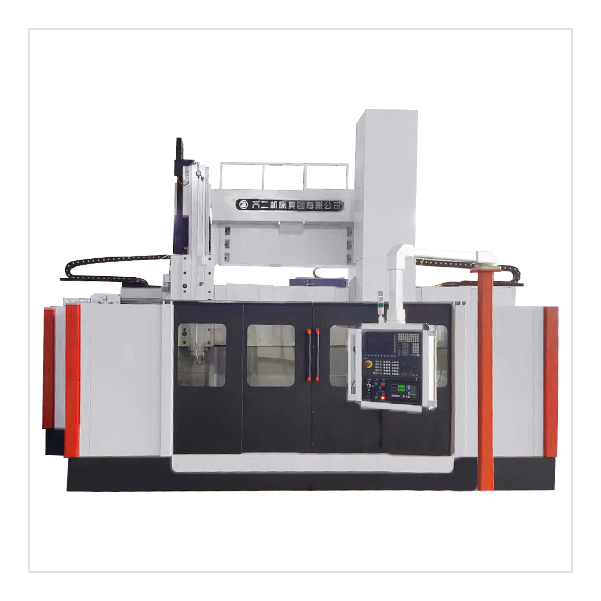

CNC Vertical Turning Lathe Machine
Brand DALIAN WAJI CNC MACHINE
Product origin CHINA LIAONING
Delivery time 3 months
Supply capacity 2-5 units per month
Product Advantages:
Unlike horizontal lathes, vertical lathes offer superior clamping stability and greater load-bearing capacity, making them specifically designed for large-diameter, heavy-weight workpieces.
Advantages of Dalian Waji:
As a direct manufacturer, we eliminate intermediaries and price markups, offering exceptional value for money.
Key components are sourced from top-tier brands, such as Siemens, FANUC, and others.
Product Overview:
Engineered for industrial environments, the DALIAN WAJI Heavy-Duty CNC Vertical Turning Lathes (VTL) are the ultimate solution for machining large-diameter, heavy, and asymmetrical components that are difficult to handle on traditional horizontal machines.
The Gravity Advantage & Stability:
By orienting the spindle vertically, our machine utilizes gravity to naturally stabilize oversized workpieces flat against the hydrostatic rotary table. This critical design completely eliminates the spindle deflection and overhang stress common in horizontal turning.
The result?
Perfect clamping security, minimal part distortion, and the ability to maintain micron-level precision even during aggressive, high-torque interrupted cuts.
Built for Heavy Industry:
Constructed with a highly rigid, thermally symmetrical cast-iron frame, our large vertical lathes deliver outstanding shock absorption and dynamic stability. Capable of handling massive payloads (with swing diameters up to 20 meters), these machines are the proven choice for complex operations in the energy, aerospace, transportation, and heavy equipment sectors—effortlessly processing everything from wind turbine hubs and heavy gear blanks to marine propeller housings.
Maximized Efficiency, Minimized Footprint.
Despite their massive cutting capacities, our vertical turning centers feature a highly optimized machine layout that significantly reduces your factory floor footprint. Fully integrated with advanced Siemens or FANUC controls, they offer intuitive operation and faster setup times.
Technical Specifications of the CNC vertical machining center:
| Model of New vertical lathe | CK578Fx H/W | CK5112Fx H/W | CK5116Fx H/W | CK5120Fx H/W |
| Max. Cutting Diameter (mm) | φ800 | φ1250 | φ1600 | φ2000 |
| Max. Workpiece Height (mm) (H×100) | H=6 | H=10/12/14 | H=10/12/14/16 | H=10/12/14/16 |
| Max. Workpiece Weight (t) | W=2 | W=3.2/5 | W=5/8 | W=8 |
| Table Diameter (mm) | 720 | φ1000 | φ1400 | φ1800 |
| Table Speed Steps | Two-Speed Stepless | 16-Speed /Two-Speed Stepless | 16-Speed /Two-Speed Stepless | 16-Speed /Two-Speed Stepless |
| Table Speed Range (r/min) | 15-460 | 6.3-200 | 5-160 | 3.15-100 |
| Max. Table Torque (N·m) | 3200 | 10000 | 20000 | 30000 |
| Crossbeam Travel (mm) | - | 650/850/1050 | 650/850/1050 | 650/850/1050 |
| Crossbeam Lifting Speed (r/min) | - | 660 | 660 | 660 |
| Crossbeam Lifting Motor Power (kW) | - | 2.2 | 2.2 | 2.2 |
| Vertical Tool Post Horizontal Travel (mm) | 710 | 850 | 1000 | 1200 |
| Vertical Tool Post Ram Vertical Travel (mm) | 600 | 850/1000 | 850/1000 | 850/1000 |
| Vertical Tool Post Feed Steps | Stepless | Stepless | Stepless | Stepless |
| Vertical Tool Post Feed Range (r/min) | 0.1-1000 | 0.1-1000 | 0.1-1000 | 0.1-1000 |
| Vertical Tool Post Rapid Traverse Speed (mm/min) | 3000 | 3000 | 3000 | 3000 |
| Max. Cutting Force (N) | 10000 | 10000 | 20000 | 25000 |
| Turning Tool Shank Cross-section (mm) | 32×32 | 40×40 | 40×40 | 40×40 |
| Machine Weight (Approx.) (t) | 8.5 | 10/12 | 12/13.5/15/16.5 | 15/17/19/21 |
| Main Motor Power (kW) | 18.5 | 22 (16-speed) / 37 (Stepless) | 30 (16-speed) / 45 (Stepless) | 37 (16-speed) / 45 (Stepless) |
| CNC System | Siemens 828D / FANUC Oi-TF / GSK 980TDI | Siemens 828D / FANUC Oi-TF / GSK 980TDI | Siemens 828D / FANUC Oi-TF / GSK 980TDI | Siemens 828D / FANUC Oi-TF / GSK 980TDI |
| Table Guide Type | Linear Guide Rails | Linear Guide Rails | Linear Guide Rails | Linear Guide Rails |
| Full Closed-Loop Control | Optional | Optional | Optional | Optional |
| Semi-enclosed Guarding, Chip Conveyor, and Coolant System | Optional | Optional | Optional | Optional |
| Ram Structure | Square Ram / 4-Station Tool Turret | Square Ram / 4-Station Tool Turret | Square Ram / 4-Station Tool Turret | Square Ram / 4-Station Tool Turret |
| Manual / Hydraulic Chuck | Optional | Optional | Optional | Optional |
| Overall Dimensions (L×W×H) (mm) | - | - | - | - |
Vertical vs. Horizontal Machining: Why Choose Vertical?
When handling oversized industrial parts, a large vertical lathe offers significant advantages over traditional horizontal machines:
Gravity Advantage: Heavy and oddly shaped parts are much easier and safer to clamp securely on a horizontal faceplate (vertical rotation) without the risk of sagging.
Zero Spindle Deflection: Unlike horizontal large vertical lathes where massive parts hang off the spindle, vertical turning eliminates overhang stress, improve higher machining accuracy.
Space Saving: Vertical orientation dramatically reduces the machine’s floor footprint.
Applications & Supported Materials:
What is this precision cnc vertical machining center used for?
It is the core manufacturing equipment for industries requiring large-scale precision: Wind turbine hubs, aerospace rings, oil & gas flanges, marine propeller housings, and mining crusher bases.
What materials can it handle?
Designed for aggressive cutting, our cnc vertical machining centers easily process:
· Cast Iron & Forged Steel
· Titanium & Aerospace Alloys
· Hardened Steel
· Heavy Metal Composites
Supplier Services: Installation & Training:
We don't just ship heavy machinery; we ensure it runs perfectly in your facility. Our complete supplier services include:
Operator Training: Comprehensive hands-on training for your staff, covering CNC programming, daily operation, and safety protocols.
Global Support: Lifetime technical support, remote diagnostics, and fast spare parts delivery.
Company Strength：

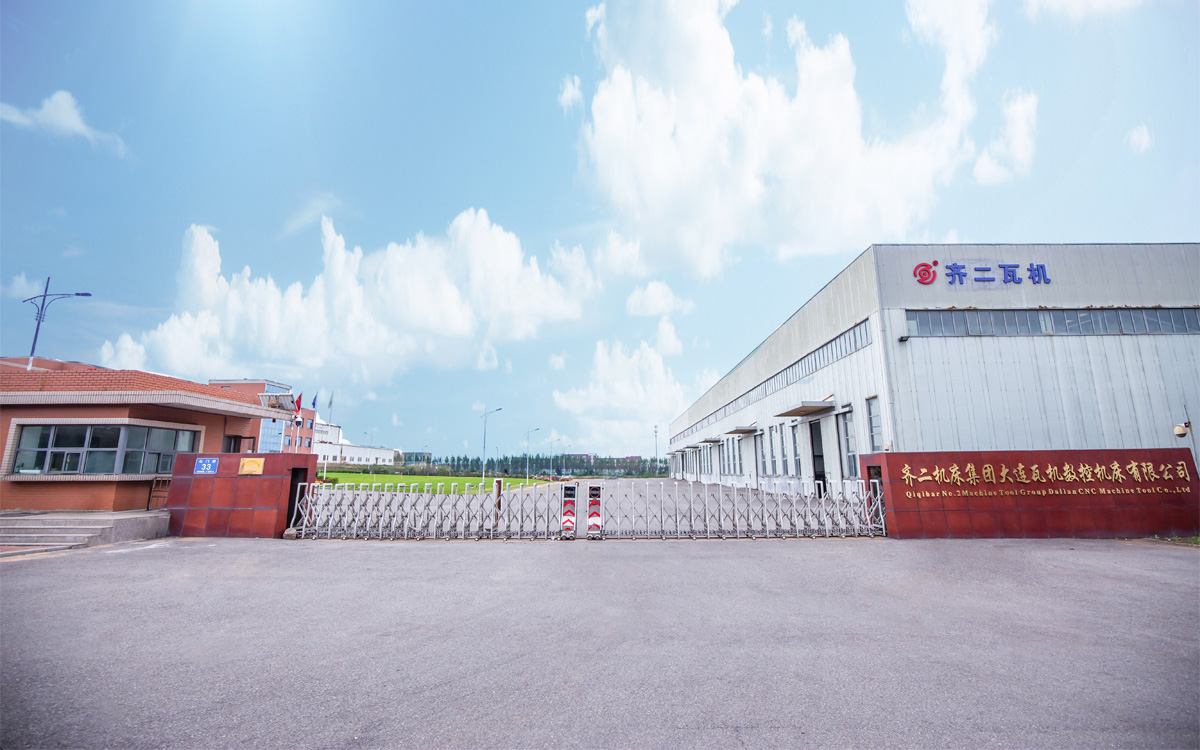

Decades of Expertise: A legacy manufacturer rooted in China's premier heavy industry hub.
In-House Casting: We control quality from the ground up by casting our own heavy-duty machine bases.
Certified Quality: Fully backed by dual ISO 9001:2015 certifications and CE compliance for global export.
Proven Capacity: Manufacturing 2-5 heavy units per month with a standard delivery time of just 3 months.
FAQ:
Q: Can this industrial cnc machine perform milling operations?
A: Yes. We offer optional live tooling configurations (C-axis and driven tools) that allow for vertical milling, drilling, and tapping in a single setup.
Q: What is the maximum load capacity of the worktable?
A: Our hydrostatic worktables can effortlessly support workpiece weights ranging from 2 tons to over 10 tons.
Q: Do you offer custom chucks for specific parts?
A: Absolutely. We provide manual, hydraulic, and fully customized multi-jaw chuck setups tailored to your specific workpiece drawings.
