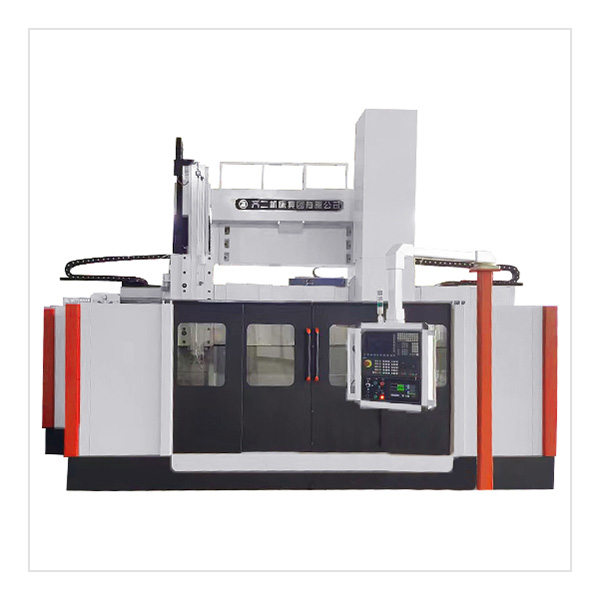

Heavy Duty CNC Vertical Lathe
Brand DALIAN WAJI CNC MACHINE
Product origin CHINA LIAONING
Delivery time 3 months
Supply capacity 2-5 units per month
1. The Dynamic Moving-Column Vertical Lathe features a high-quality, single-piece cast iron base, offering exceptional rigidity; it can stably support ultra-heavy workpieces weighing tens of tons without deformation.
2. The equipment supports flexible customization for ultra-large swing diameters, significantly expanding the machining range.
3. The Dynamic Moving-Column Vertical Lathe supports the addition of milling heads and grinding attachments, enabling complete machining—including turning, milling, and grinding—in a single clamping setup.
Breaking Limits: Engineered for Heavy-Duty Cutting and Large-Scale Machining.
When standard machine tools fail to meet your massive and heavy-duty machining requirements, DALIAN WAJI’s High-Rigidity Vertical Turning Machine is your ideal solution. Developed by a team of senior engineers, our machine is specifically designed to support extremely heavy workpieces and withstand powerful cutting forces, ensuring unwavering stability even under the most extreme machining conditions.
Parameters of the Large Swing Diameter Vertical Lathe:
| Product Model | CK578Fx H/W | CK5112Fx H/W | CK5116Fx H/W | CK5120Fx H/W |
| Max. Cutting Diameter (mm) | φ800 | φ1250 | φ1600 | φ2000 |
| Max. Workpiece Height (mm) (H×100) | H=6 | H=10/12/14 | H=10/12/14/16 | H=10/12/14/16 |
| Max. Workpiece Weight (t) | W=2 | W=3.2/5 | W=5/8 | W=8 |
| Table Diameter (mm) | 720 | φ1000 | φ1400 | φ1800 |
| Table Speed Steps | Two-Speed Stepless | 16-Speed /Two-Speed Stepless | 16-Speed /Two-Speed Stepless | 16-Speed /Two-Speed Stepless |
| Table Speed Range (r/min) | 15-460 | 6.3-200 | 5-160 | 3.15-100 |
| Max. Table Torque (N·m) | 3200 | 10000 | 20000 | 30000 |
| Crossbeam Travel (mm) | - | 650/850/1050 | 650/850/1050 | 650/850/1050 |
| Crossbeam Lifting Speed (r/min) | - | 660 | 660 | 660 |
| Crossbeam Lifting Motor Power (kW) | - | 2.2 | 2.2 | 2.2 |
| Vertical Tool Post Horizontal Travel (mm) | 710 | 850 | 1000 | 1200 |
| Vertical Tool Post Ram Vertical Travel (mm) | 600 | 850/1000 | 850/1000 | 850/1000 |
| Vertical Tool Post Feed Steps | Stepless | Stepless | Stepless | Stepless |
| Vertical Tool Post Feed Range (r/min) | 0.1-1000 | 0.1-1000 | 0.1-1000 | 0.1-1000 |
| Vertical Tool Post Rapid Traverse Speed (mm/min) | 3000 | 3000 | 3000 | 3000 |
| Max. Cutting Force (N) | 10000 | 10000 | 20000 | 25000 |
| Turning Tool Shank Cross-section (mm) | 32×32 | 40×40 | 40×40 | 40×40 |
| Machine Weight (Approx.) (t) | 8.5 | 10/12 | 12/13.5/15/16.5 | 15/17/19/21 |
| Main Motor Power (kW) | 18.5 | 22 (16-speed) / 37 (Stepless) | 30 (16-speed) / 45 (Stepless) | 37 (16-speed) / 45 (Stepless) |
| CNC System | Siemens 828D / FANUC Oi-TF / GSK 980TDI | Siemens 828D / FANUC Oi-TF / GSK 980TDI | Siemens 828D / FANUC Oi-TF / GSK 980TDI | Siemens 828D / FANUC Oi-TF / GSK 980TDI |
| Table Guide Type | Linear Guide Rails | Linear Guide Rails | Linear Guide Rails | Linear Guide Rails |
| Full Closed-Loop Control | Optional | Optional | Optional | Optional |
| Semi-enclosed Guarding, Chip Conveyor, and Coolant System | Optional | Optional | Optional | Optional |
| Ram Structure | Square Ram / 4-Station Tool Turret | Square Ram / 4-Station Tool Turret | Square Ram / 4-Station Tool Turret | Square Ram / 4-Station Tool Turret |
| Manual / Hydraulic Chuck | Optional | Optional | Optional | Optional |
| Overall Dimensions (L×W×H) (mm) | - | - | - | - |
Why Choose Our Large Swing Diameter Vertical Lathe for Machining Large Parts?

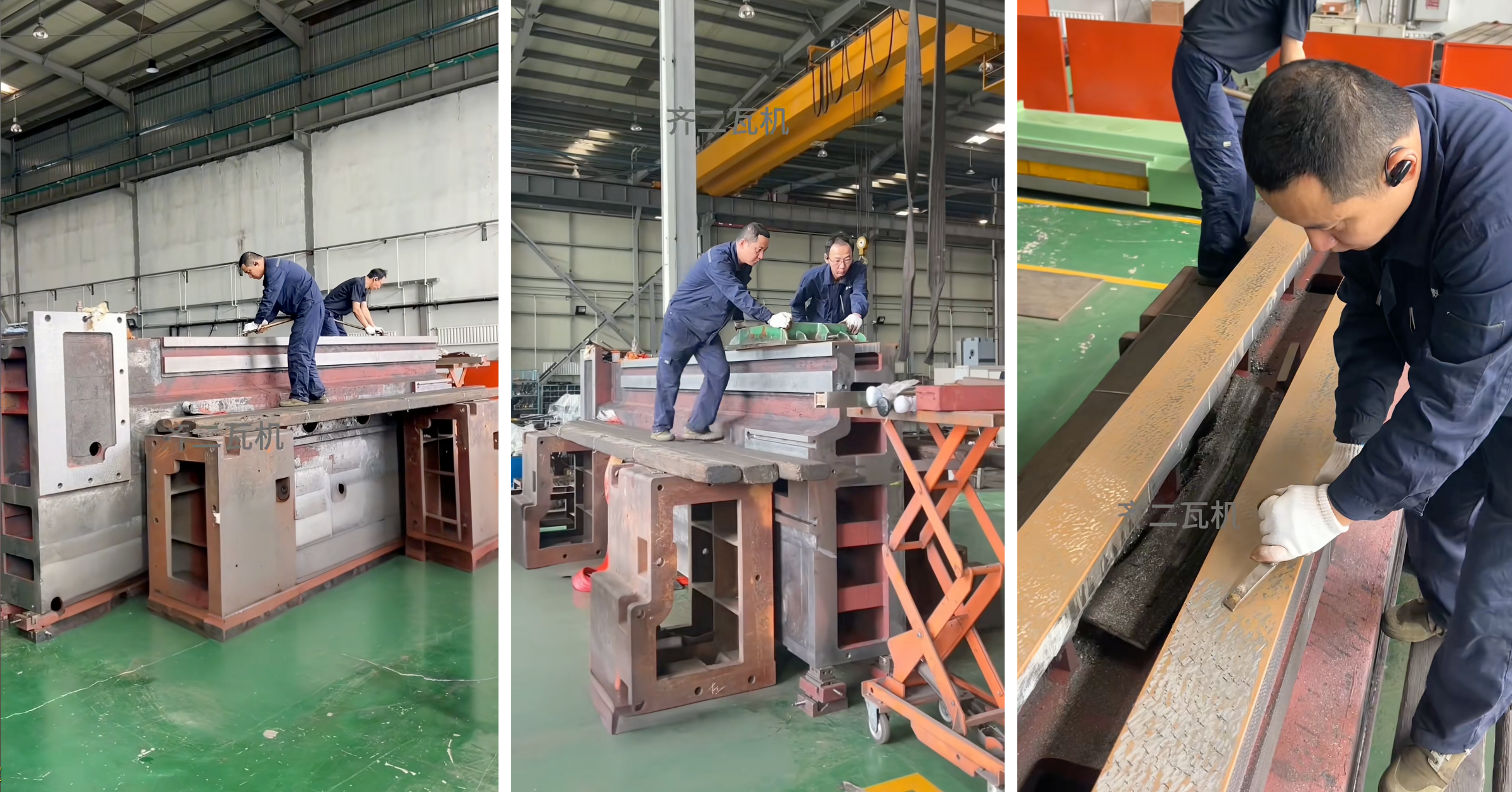

High-Rigidity Bed: Features a single-piece, high-quality cast iron base (single-piece cast structure) that fundamentally eliminates the risk of deformation. It remains rock-steady—like a mountain—even when facing massive, heavy-duty workpieces weighing tens or even hundreds of tons.
Dynamic Moving-Column Design: Say goodbye to the limitations of traditional fixed columns! Our moving-column structure vastly expands the maximum machining diameter (customizable up to 20,000 mm). This ensures that the machining of ultra-large heavy-duty cylinders and giant generator impellers is no longer restricted by machine size.
Cutting Power: The main drive is equipped with high-power variable-frequency drive technology (offering DC power configurations ranging from 75 kW to 160 kW), delivering a maximum cutting force of up to 125 kN. Regardless of material hardness or depth of cut, it provides a stable output of high torque at low speeds.
Typical Application Fields:
Wind Power & Energy Equipment: Wind turbine main bearings, generator rotor housings.
Aerospace: Engine Casings, Large Load-Bearing Flanges.
Mining & Construction Machinery: Heavy-Duty Gear Blanks, Excavator Slewing Bearings.
Fluid Control: Large-Scale Industrial Valve Bodies.
Quality Commitment: Direct Supply from the Source Factory (Factory Direct & Guaranteed)
As a 100% genuine source manufacturer—eliminating intermediaries and their markups—every piece of equipment undergoes rigorous factory acceptance testing based on real-world application scenarios prior to shipment. The system offers comprehensive support for Siemens 828D, FANUC 0i-TF, and GSK 980TDI controls, ensuring high compatibility as well as extremely convenient spare parts procurement and maintenance.
