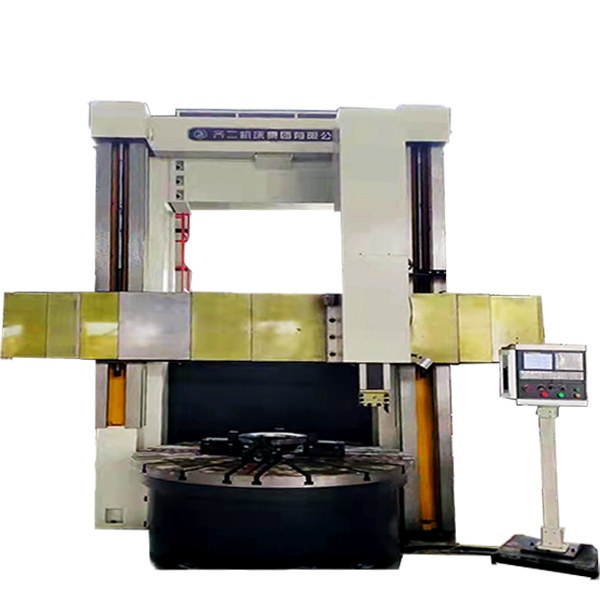

High Precision Double Column Vertical Lathe Machine
Brand DALIAN WAJI CNC MACHINE
Product origin CHINA LIAONING
Delivery time 3 months
Supply capacity 2-5 units per month
1. A global installation team will assist you during the whole process - from selecting construction method for the foundation to setting up of machines (the service may incur additional charges).
2. Around-the-world Spare Parts Network : Spindle, Guide rail and controller, core parts for our double column vertical lathes are always available in a worldwide warehouse network, enabling you to receive the parts within 72 hours at most.
3. Thorough Training : With the purchase of our double column vertical lathe you receive original manufacturer"s training materials to support you with programming and maintenance tasks. This helps your team to extract maximum productivity from the machine.
The machine stability in machining precision parts, especially big cylindrical shafts, hubs, gear rings, and parts of airplanes, is a determining factor for the percentage of quality products at the very end. We developed a cnc double-column vertical lathe machine (VTL) with an aim to eliminate vibration and deformation problems, which are typical in a single-column design when using traditional methods at the time of heavy machining.
Why Choose a cnc double column vertical lathe machine?
The use of a dual-column design significantly improves not only the resistance of the machine tool to vibrations but also the maintenance of its geometrical accuracy while performing ultra-torcque cutting work.
Our double column vertical lathes offer a comprehensive machining range—from the CK5225 model (Φ2500mm) to the CK5280 model (Φ8000mm)—meeting the production demands of various scales.
These vertically arranged machine tools, known as turning centers, have a maximum load-bearing capability of 125 tons. Such a figure guarantees the stability of extremely heavy workpieces even at the highest RPMs.
For double column vertical lathes, the company is using hydrostatic (rolling guide rails are available at an extra cost in selected models) guide rail systems in order to provide long life of the equipment as well as high-precision moving.
Supports SIEMENS and FANUC control systems, with optional closed-loop control capabilities to meet the most stringent industry tolerance requirements.
Parameters of CNC vtl machine:
Medium-Duty Series (φ2500 - φ4000):
| Model | CK5225Fx H/W | CK5231Fx H/W | CK5235FxH/W | CK5240FxH/W |
| Max. Turning Diameter (mm) | φ2500 | φ3150 | φ3500 | φ4000 |
| Max. Workpiece Height (mm) | 16/20/25 | 16/20/25 | 16/20/25 | 20/25/31.5 |
| Max. Workpiece Weight (t) | 12/16/20 | 12/16/20 | 20/32 | 20/32 |
| Worktable Speed Range (r/min) | 0.63- 63 | 0.63- 63 | 0.63- 63 | 0.63- 63 |
| Main Motor Power (kW) | 55 (AC) | 55 (AC) | 55 (AC) | 55 (AC) |
Heavy-Duty Series (φ5000 - φ8000):
| Model | CK5250F ×H/W | CK5263F×H/W | CK5263F ×H/W | CK5280F × H/W |
| Max. Turning Diameter （mm） | φ5000 | φ6300 | φ6300 | φ8000 |
| Max. Workpiece Height （mm） | 31.5/35/40 | 31.5-35 | 40 | 40/50 |
| Max. Workpiece Weight （t） | 32/40/50 | 50 | 80 | 125 |
| Worktable Speed Range （r/min） | 0.5- 50 | 0.5- 50 | 0.32-32 | 0.2-20 |
| Main Motor Power （kW） | 90 （AC） | 90 （AC） | 132 （DC） | 132 （DC） |
Technical Highlights: A Closer Look at Core Components.
1. Extreme Rigidity: Unyielding Against Cutting Forces.
The tool posts on both sides of our vertical turning lathe machines have a cross-section of up to 70x70mm and can withstand cutting forces as far as 80kN. This strong structural design not only protects the cutting tool from cutting forces, but also guarantees that the tool bit does not become deformed, even when deep-hole machining or turning complex contour surfaces.
2. Hydrostatic Guide Rail Technology.
For major vertical turning machines, those with diameters over Φ5000mm, we have high-performance hydrostatic guideways offered as a standard equipment. With constant film pressure, the worktable is entirely separated from the guideways; this allows the system to sustain a very high load level and totally eradicates the problems of abrasion resulting from metal-on-metal direct friction.
3. Intelligent Control System.
Our vertical turning lathe machines come standard with world-class SIEMENS or FANUC control systems. We also offer an optional "Full Closed-Loop Control" system; utilizing high-precision linear scales for position feedback, this ensures that—even during the machining of parts up to 8 meters in diameter—the required geometric tolerances are consistently met, while simultaneously eliminating cumulative errors within the machine's drive train.
Optional Configurations: Build Your Customized Machine Tool.
To further enhance your production automation capabilities, we offer the following optional features:
· Full Closed-Loop Control System: Boosts positioning accuracy, making it ideal for the production of aerospace-grade components.
· Semi-Enclosed Guarding and Automatic Chip Conveyor: Optimizes the production environment and elevates the level of equipment automation.
· Customized Tooling Systems: Select either a 4-position electric turret or a square tool post system, tailored specifically to your machining processes.
Still looking for a Heavy-Duty CNC Vertical Turning Lathe that can take on Oversized Workpieces? Just let us know the dimensions and the types of materials for your parts. As a return you will get a recommendation form our application engineers for a model that's both most economical and productive or a customized solution for your particular requirement.
