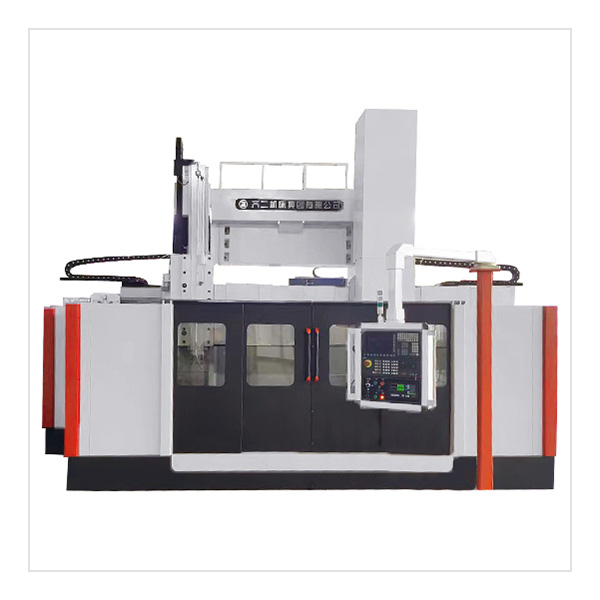

High-Rigidity Large Swing Diameter Vertical Lathe for Heavy Industries
Brand DALIAN WAJI CNC MACHINE
Product origin CHINA LIAONING
Delivery time 3 months
Supply capacity 2-5 units per month
1. The Heavy duty VTL with milling head features smooth, stepless speed control, ensuring a high-quality surface finish on workpieces.
2. The machine comes standard with semi-enclosed guarding, an automatic chip conveyor, and a high-pressure coolant system—effectively eliminating the common issue of chip entanglement during deep-hole machining.
3. With its compact vertical structural layout, this Industrial Vertical Lathe saves over 40% of floor space in the workshop compared to horizontal lathes of equivalent specifications.
Redefining Productivity: One Heavy-Duty VTL with Milling Head Handles the Entire Process Chain.
Are you still struggling with the headache of shuttling heavy parts back and forth between lathes, milling machines, and grinders? The DALIAN WAJI Multi-Tasking Vertical Lathe offers you the perfect solution: "Done in One Setup." This approach drastically reduces secondary positioning errors and multiplies your factory's production capacity.
Core Advantages Tailored for the Modern, High-Efficiency Industrial vertical lathe:
Integrated Multi-functional Machining (Turning/Milling/Boring/Grinding):
Beyond its exceptional turning capabilities, this Stepless-Speed CNC Vertical Lathe can be equipped with an automatic counterweight system, as well as a universal milling head, side tool post, grinding attachments, and boring tools. Face milling, internal and external cylindrical turning, drilling, and tapping—all completed on a single machine!
Parameters of the Large Swing Diameter Industrial vertical lathe:
| Product Model | CK578Fx H/W | CK5112Fx H/W | CK5116Fx H/W | CK5120Fx H/W |
| Max. Cutting Diameter (mm) | φ800 | φ1250 | φ1600 | φ2000 |
| Max. Workpiece Height (mm) (H×100) | H=6 | H=10/12/14 | H=10/12/14/16 | H=10/12/14/16 |
| Max. Workpiece Weight (t) | W=2 | W=3.2/5 | W=5/8 | W=8 |
| Table Diameter (mm) | 720 | φ1000 | φ1400 | φ1800 |
| Table Speed Steps | Two-Speed Stepless | 16-Speed /Two-Speed Stepless | 16-Speed /Two-Speed Stepless | 16-Speed /Two-Speed Stepless |
| Table Speed Range (r/min) | 15-460 | 6.3-200 | 5-160 | 3.15-100 |
| Max. Table Torque (N·m) | 3200 | 10000 | 20000 | 30000 |
| Crossbeam Travel (mm) | - | 650/850/1050 | 650/850/1050 | 650/850/1050 |
| Crossbeam Lifting Speed (r/min) | - | 660 | 660 | 660 |
| Crossbeam Lifting Motor Power (kW) | - | 2.2 | 2.2 | 2.2 |
| Vertical Tool Post Horizontal Travel (mm) | 710 | 850 | 1000 | 1200 |
| Vertical Tool Post Ram Vertical Travel (mm) | 600 | 850/1000 | 850/1000 | 850/1000 |
| Vertical Tool Post Feed Steps | Stepless | Stepless | Stepless | Stepless |
| Vertical Tool Post Feed Range (r/min) | 0.1-1000 | 0.1-1000 | 0.1-1000 | 0.1-1000 |
| Vertical Tool Post Rapid Traverse Speed (mm/min) | 3000 | 3000 | 3000 | 3000 |
| Max. Cutting Force (N) | 10000 | 10000 | 20000 | 25000 |
| Turning Tool Shank Cross-section (mm) | 32×32 | 40×40 | 40×40 | 40×40 |
| Machine Weight (Approx.) (t) | 8.5 | 10/12 | 12/13.5/15/16.5 | 15/17/19/21 |
| Main Motor Power (kW) | 18.5 | 22 (16-speed) / 37 (Stepless) | 30 (16-speed) / 45 (Stepless) | 37 (16-speed) / 45 (Stepless) |
| CNC System | Siemens 828D / FANUC Oi-TF / GSK 980TDI | Siemens 828D / FANUC Oi-TF / GSK 980TDI | Siemens 828D / FANUC Oi-TF / GSK 980TDI | Siemens 828D / FANUC Oi-TF / GSK 980TDI |
| Table Guide Type | Linear Guide Rails | Linear Guide Rails | Linear Guide Rails | Linear Guide Rails |
| Full Closed-Loop Control | Optional | Optional | Optional | Optional |
| Semi-enclosed Guarding, Chip Conveyor, and Coolant System | Optional | Optional | Optional | Optional |
| Ram Structure | Square Ram / 4-Station Tool Turret | Square Ram / 4-Station Tool Turret | Square Ram / 4-Station Tool Turret | Square Ram / 4-Station Tool Turret |
| Manual / Hydraulic Chuck | Optional | Optional | Optional | Optional |
| Overall Dimensions (L×W×H) (mm) | - | - | - | - |
Stepless Speed Control and Ultimate Surface Finish:
Equipped with an intelligent variable-frequency stepless speed control system (ranging from 0.16 to 40 r/min, or wider), the machine allows for smooth speed transitions at any stage of the machining process. This not only extends tool life but also delivers an outstanding surface finish on the workpiece.
Completely Eliminating Chip Evacuation Issues (Advanced Chip Evacuation):
Chip entanglement during deep-hole machining is a major concern for vertical lathes. We address this by providing standard features including semi-enclosed guarding, a fully automatic chip conveyor, and a high-flow coolant system. This powerful combination effectively flushes away chips, ensuring continuous and stable production—even during unattended operation.
The Champion of Space Utilization:
While offering an exceptionally large turning diameter (standard range: Ø800 to Ø2000 mm), the structural design of our Stepless Speed CNC Vertical Lathe significantly reduces the required floor space in your workshop compared to traditional large horizontal lathes. This frees up valuable space, allowing you to focus on creating value.
Investing in a heavy-duty multi-tasking vertical lathe from us means securing a long-term guarantee of exceptional service.
We provide comprehensive, end-to-end Turn-key Solutions covering everything from pre-sales consultation to after-sales support:
·Precise Pre-sales Simulation: Our team of experts analyzes your part drawings to identify the perfect configuration—including column height, spindle torque, and travel parameters—to meet your specific needs.
·Rapid Response: For after-sales technical inquiries, we guarantee a clear and definitive solution within just 6 hours.
·On-site Expert Support: We dispatch senior technical specialists—each with 5 to 10 years of experience in heavy machinery—to provide guidance on foundation pouring, on-site installation and commissioning, and final acceptance services. (Fees may apply.)
·Rigorous International Certification: We take immense pride in our manufacturing processes, which fully comply with globally recognized standards. Our entire product line holds ISO 9001:2015 Quality Management System certification, China Quality Certification Centre (CQC) certification, and authoritative accreditation from both the IAF and CNAS.
