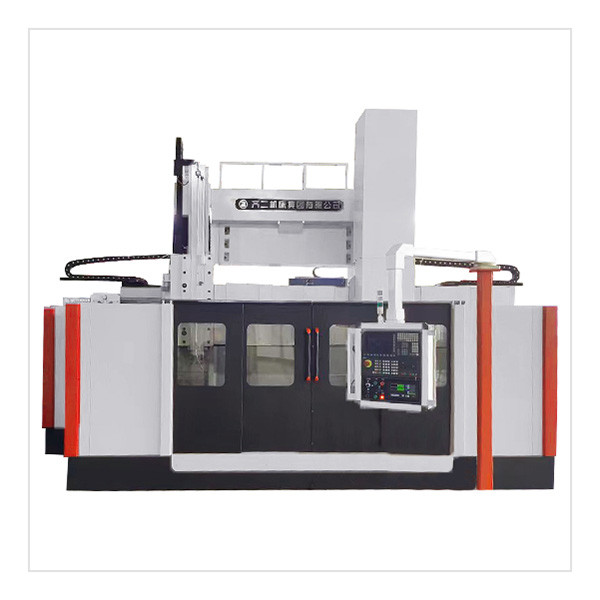

CNC Vertical Lathe Buyer’s Guide: How to Select a Machine for Large and Heavy Parts
Buying a CNC vertical lathe should begin with the workpiece and machining process, not with a catalog model or a low initial price. For large, heavy or short rotational components, the vertical configuration can provide a practical load path, stable workholding and efficient access to the part. The machine still has to be correctly sized for diameter, height, weight, cutting force, tooling and production volume.
Why the vertical configuration is useful
A vertical lathe places the workpiece on a horizontal rotating table. This is particularly useful when a component has a large diameter and substantial mass but relatively limited length. The table supports the component from below, which can simplify loading and alignment for suitable parts. It does not mean every large part should be turned vertically; long shafts and slender components may still favor horizontal turning.
Start with the real workpiece envelope
Record the maximum outside diameter, minimum diameter, height, rough weight, finished weight, bore size and fixture dimensions. Then identify the farthest feature the tool must reach. A machine can have a large nominal swing but still be unsuitable if a ram, tool holder or fixture cannot reach an internal shoulder or deep bore. A representative drawing is therefore more useful than a simple request such as “quote a two-meter lathe.”
Single column or double column?
A single column vertical lathe is often suitable when the workpiece fits comfortably within the selected model’s diameter, height and load rating. A double column vertical lathe becomes more attractive when the workpiece is exceptionally large or heavy, or when high cutting forces demand a broader structural frame. The correct choice is the smallest structure that provides a comfortable process window rather than the largest machine available.
The specifications that matter most
Maximum usable turning diameter and workpiece height.
Rated table load under the intended operating conditions.
Table diameter, speed range and available torque.
Ram, cross-rail and tool travel for the deepest feature.
Tool post or turret configuration and tool capacity.
CNC control, probing, automation and chip-management options.
Foundation, crane access, installation and maintenance clearance.
Torque, rigidity and cutting stability
Heavy roughing is often governed by torque and structural stiffness rather than maximum rpm. Large-diameter steel or cast components can generate high cutting forces, especially when there is interrupted material. Buyers should ask the supplier to evaluate the hardest roughing operation, including material, stock allowance, tool size and expected depth of cut. A high headline spindle speed is not a substitute for stable low- or medium-speed cutting.
Accuracy is a system result
Finished-part accuracy depends on machine geometry, guideways, bearings, thermal behavior, workholding, tooling and measurement. A CNC controller can command precise motion, but it cannot compensate for an unstable fixture or excessive tool deflection. For critical parts, specify the actual feature tolerance, material, diameter and inspection method so the supplier can discuss process capability rather than make a generic accuracy statement.
The final selection principle
The best CNC vertical lathe is not necessarily the largest or cheapest. It is the machine that gives the part enough diameter, height, load capacity, torque, rigidity and tool access with a realistic margin. If several models fit, compare cycle time, tooling, installation and future product plans. A supplier that reviews your drawing before recommending the configuration is usually providing more useful engineering value than a supplier that sends only a generic price.
