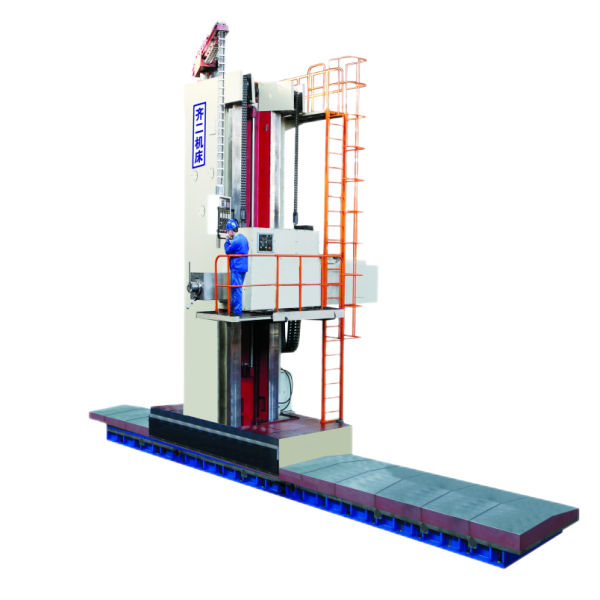

Floor-Type Horizontal Milling and Boring Machine
Brand DALIAN WAJI CNC MACHINE
Product origin CHINA LIAONING
Delivery time Depending on the specific order, pre-production investment has been made
Supply capacity Depending on the specific order
1. Floor-type horizontal boring machine can flexibly machine extra-large and irregularly shaped workpieces to maximize workshop productivity.
2. Connect directly with Dalian Waji's core engineering team to obtain tooling, fixtures, and machining solutions based on your blueprints.
We are also open to discussing any additional design requirements.

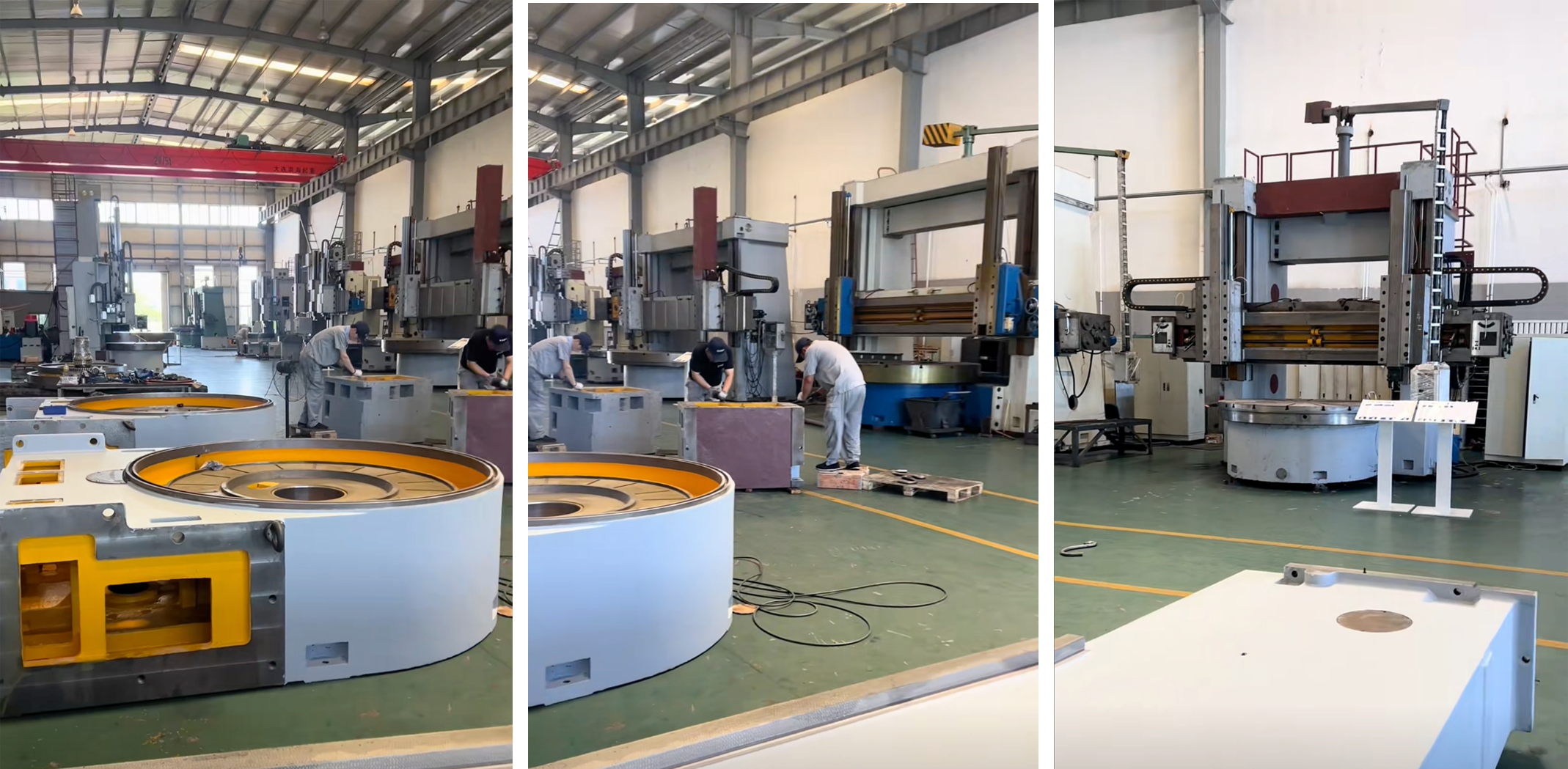

3. Factory visits are welcome—see the quality firsthand.
T69 Series: Heavy-Duty Floor-Type Milling & Boring
Designed for Massive Workpieces. Custom Engineered for Your Geometry. Factory-Direct Reliability.
Spindle Diameter: 110mm - 160mm
Max Load: Up to 50 Tons
Travel: Custom X/Y/Z Lengths
Delivery: 3-Month Lead Time
Why Procurement Managers Choose T69 for Large-Scale Projects
Structural Rigidity
Meehanite iron castings and multi-stage stress relief prevent deformation during heavy-duty material removal. Your parts stay within geometric tolerances.
Unlimited Reach
Floor-type architecture removes the "table size" bottleneck. Machine parts significantly larger than the base by integrating auxiliary rotary tables.
Factory-Direct Logic
No dealers, no markups. You get more machine for your budget, backed by 72-hour spare parts response from Dalian Waji engineers.
Engineering Precision: Deep-Dive Technical Specifications
T69 Series horizontal milling and boring machine: The Foundation of Heavy Industrial Precision
1. Engineered for the Most Demanding Heavy-Duty Environments
The T69 series horizontal milling and boring machine by Dalian Waji is not just a piece of hardware; it is a long-term strategic asset designed for industries where "large-scale" is the standard. From power generation turbine housings to the massive cast-iron frames of petrochemical pumps, the T69 provides the structural integrity required for high-torque, low-vibration material removal.
Unlike gantry-style machining centers that limit workpiece volume to the size of the table, the T69’s floor-type design provides unlimited spatial flexibility. You can machine workpieces that are significantly larger than the machine base itself by effectively utilizing the floor space and auxiliary rotary tables.
2. Advanced Metallurgical & Structural Dynamics
At Dalian Waji, we begin with the iron. The T69 series floor-type horizontal boring machine utilizes high-grade Meehanite iron castings, which are essential for damping high-frequency vibrations during deep-hole boring. Every casting undergoes a two-stage stress-relief process: initial rough machining followed by a controlled aging cycle. This prevents the "latent deformation" that plagues lower-tier machinery, ensuring that the alignment of the spindle to the column remains perfect even after years of heavy-duty operation.
The column design utilizes a thermally symmetrical box structure, which prevents the "leaning" effect common in less robust designs when the spindle box undergoes rapid vertical movement or sustained thermal loading during continuous machining.
3. Precision Boring & Milling Performance
The core of the T69 new horizontal floor type boring mills's performance lies in its dual-range spindle system. By incorporating an integrated gearbox, the machine offers two distinct power curves: high-torque for heavy, aggressive boring of steel and cast iron, and high-RPM for precision milling and finish-boring.
Hardened Quill Stability: The spindle quill is induction hardened and precision-ground, providing high rigidity even when fully extended for deep-cavity machining.
Hydrostatic Support: Optional hydrostatic systems on critical interfaces ensure frictionless movement under massive payloads, extending the operational life of the machine’s guideways.
Thermal Compensation: Built-in sensors track spindle temperature, adjusting the position parameters via the control system to negate the impact of thermal expansion during long, 8-hour production cycles.
4. Customization: The Dalian Waji Philosophy
We recognize that no two large-scale projects are identical. Therefore, the T69 series industrial milling and boring machine is modular. We collaborate with your engineers to define the optimal X, Y, and Z axis travel requirements. Whether you require a specialized facing head for machining large pipe flanges or a universal angular head to reach complex internal geometries, our team designs the interface directly into the T69 architecture.
5. Operational Longevity & Global Support
Investing in a T69 is a multi-decade decision. To protect your investment, Dalian Waji provides:
Geometric Integrity Audits: Comprehensive laser-interferometer alignment documentation at the time of commissioning.
Modular Maintenance: All key electrical and pneumatic components are housed in accessible, standardized cabinets to simplify technician intervention.
72-Hour Response: Our direct-to-factory support model means you are never waiting on a third-party intermediary for critical spare parts.
