Explore our high-rigidity CNC double column vertical turning and milling center with C-axis, models CXH5263 and CXH5280. Achieve compound machining in one setup to boost efficiency for defense applications.

Choosing a vertical turning machine is not simply a matter of selecting the largest available model. For manufacturers machining large-diameter, heavy or short rotational components, the right machine must match the workpiece envelope, loading method, cutting requirements, production volume, control system and future expansion plans.

Vertical CNC lathes are widely considered for large rotational components in heavy machinery, energy equipment, mining, transportation and general engineering. The useful capacity is determined by part geometry and process, not industry name alone.

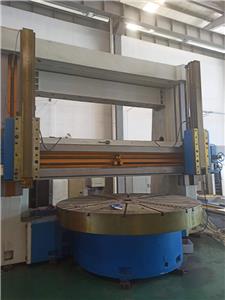

A single-column design uses one primary vertical structural member to support the cross-rail and tool system. A double-column design uses a wider frame with two columns and a beam arrangement. The double-column structure can provide a larger working envelope and a stable load path for very large components. The difference should be evaluated through actual cutting conditions rather than visual size.

Buying a CNC vertical lathe should begin with the workpiece and machining process, not with a catalog model or a low initial price. For large, heavy or short rotational components, the vertical configuration can provide a practical load path, stable workholding and efficient access to the part. The machine still has to be correctly sized for diameter, height, weight, cutting force, tooling and production volume.

Buying a new CNC vertical lathe is an opportunity to remove a production bottleneck, standardize programming and expand part capability. The machine should be selected from a measurable production requirement rather than from a feature list.

12. Think About Production Rather Than Machine Size Alone A larger machine is not automatically the most economical solution. Oversizing the machine can increase: Purchase cost

6. Evaluate Machine Rigidity Rigidity is one of the most important characteristics of a heavy-duty CNC vertical lathe. During heavy cutting, the cutting force is transferred through the tool, toolholder, ram, crossrail, column, machine base, and worktable.

1. Start With the Maximum Workpiece Diameter The first technical specification to evaluate is the maximum machining diameter. A buyer should determine: 1. The maximum outside diameter of the workpiece.
